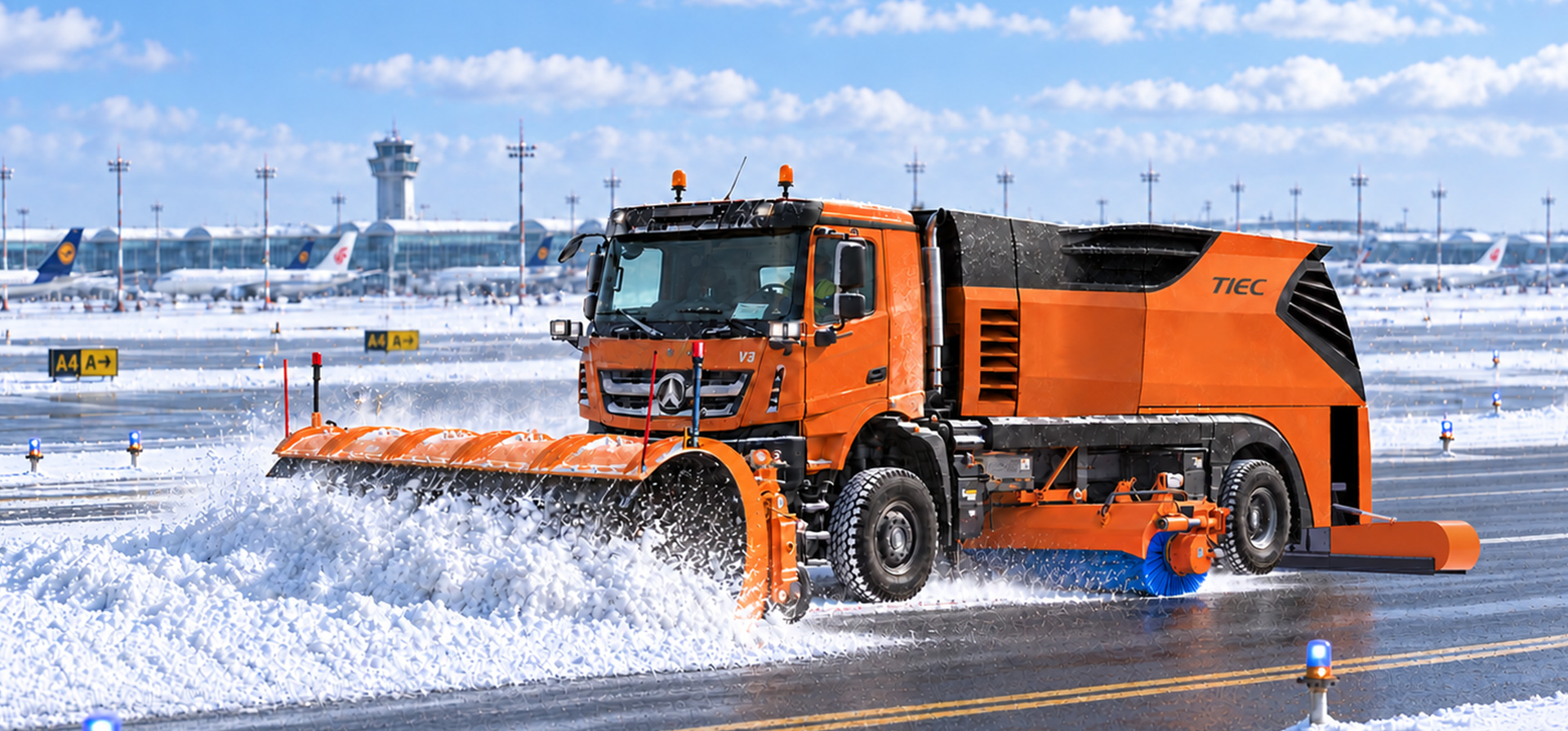

T300 Compact 3-in-1

T300 Compact 3-in-1

.

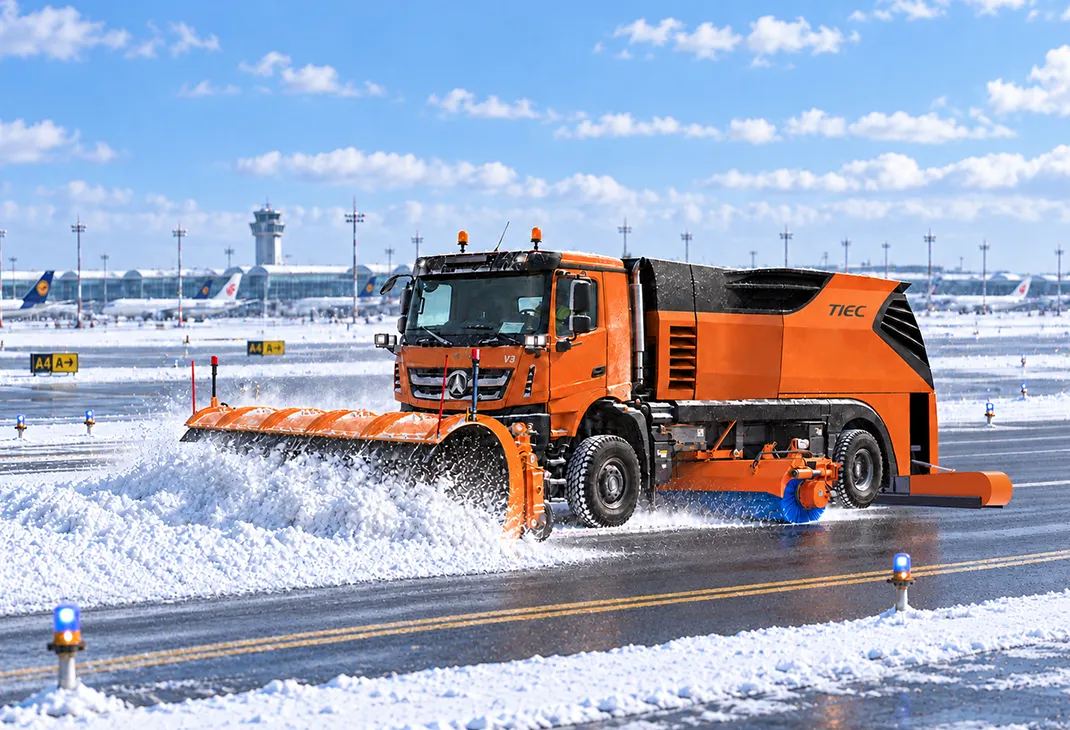

The T300 3-in-1 High-Speed Snowplow is a product developed by Tianjia based on domestic operational requirements. Built on a modified Sinotruk Class II chassis, it features reliable operation, excellent performance, advanced technology, and robust power, making it an outstanding solution for airport snow removal. It is widely applicable for snow clearance operations on runways, taxiways, and connecting taxiways, and can also be used for snow removal in apron areas.



The core assemblies, including the snowplow, sweeping roller brush,
The core assemblies, including the snowplow, sweeping roller brush,
and snow blower fan, are equipped with TIEC's proprietary core technologies, delivering strong adaptability to working conditions and excellent operational efficiency. Benefiting from upgraded manufacturing processes and premium materials, the machine experiences fewer failures during long-term operation and features extended maintenance cycles. This significantly reduces operation and maintenance costs, highlighting its outstanding overall cost-effectiveness and practicality.
The reinforced chassis is robust and highly durable
The reinforced chassis is robust and highly durable
The auxiliary engine delivers ample power output, ensuring stable operation and smooth, agile travel during work. The snowplow and roller brush have been structurally optimized to further increase the working width, providing wider coverage per pass and significantly boosting overall operational efficiency, effortlessly handling various complex working scenarios.
The snowplow blade is made of HDPE material
The snowplow blade is made of HDPE material
which is wear-resistant, corrosion-proof, and lightweight. This helps reduce the load on the front axle and enhances driving stability. The supporting frame is constructed from high-strength alloy steel, offering excellent impact resistance and deformation prevention. Driven by a highly responsive electro-hydraulic control system and featuring a modular design with independent obstacle-avoidance capabilities, the equipment ensures convenient, safe, and reliable operation.
The center-mounted roller brush is driven by dual left and right motors
The center-mounted roller brush is driven by dual left and right motors
delivering ample torque and strong driving force to ensure stable operation and high sweeping efficiency in heavy snow conditions. Equipped with a dedicated anti-snow baffle, it effectively prevents snow from intruding into critical components such as the chassis, engine, and front axle. This prevents snow-induced damage to the parts and guarantees the equipment's long-term, stable operation under harsh working conditions.
The rear-mounted blower is positioned at the rear axle of the vehicle.
The rear-mounted blower is positioned at the rear axle of the vehicle.
rear axle and features a dual-side air outlet structure for highly efficient airflow across the entire area. With its high air volume and powerful blowing force, it thoroughly clears loose residual snow from the road surface. Its snow removal efficiency surpasses that of conventional equipment, making it perfectly suited for various winter road snow clearance and maintenance scenarios, delivering excellent and stable operational performance.
The auxiliary engine is equipped with a high-efficiency,
The auxiliary engine is equipped with a high-efficiency,
high-power Cummins model, delivering robust power and stable performance to adapt to various harsh working conditions. It ensures stable start-stop operation across a wide temperature range of -35℃ to 50℃. Furthermore, it supports operations in high-altitude environments over 5,000 meters with oxygen-deficient conditions, maintaining strong, uncompromised power output to perfectly suit diverse snow removal scenarios.
The cab control console features a clear
The cab control console features a clear
intuitive interface and a well-organized functional layout, allowing for quick identification and operation. Key components of the entire machine are equipped with an intelligent centralized computer control system, ensuring precise operational control and stable running. The scientifically and rationally positioned console facilitates real-time monitoring of equipment status, thereby simplifying the operation process and optimizing the overall working experience.

Technical Specifications

Parameter Name
Parameter Value
Product Category
T300 Compact 3-in-1 Snow Removal Vehicle
Product Model
T300
Chassis Curb Weight (kg)
9800
Maximum Gross Vehicle Weight (kg)
22000
Chassis Brand
SINOTRUK
Drive
4×4
Engine - Brand
SINOTRUK
Engine - Power
338
Engine - Fuel Type
Diesel
Engine - Emission Standard
China VI
Auxiliary Engine - Brand
SINOTRUK
Auxiliary Engine - Model
XC5614
Auxiliary Engine - Emission Standard
China Non-road Stage IV
Auxiliary Engine - Power
264/316
Parameter Name
Parameter Value
Model
FS4590
Snow Plow Width (mm)
5600
Working Width (mm)
4500
Deflection Angle (°)
≥30
Parameter Name
Parameter Value
Brush Width/Brush Width
3897
Brush Working Width (mm)
4840
Brush Speed (rpm)
≥700
Max. Deflection Angle (°)
≥30
Parameter Name
Parameter Value
Model
CX5545
Number of Air Outlets (Units)
2
Adjustable Wind Direction, Outlet Ground Clearance, and Working Width
Air Discharge Volume (m³/h)
≥45000

Reference track record

Taiyuan Wusu International Airport is a regional hub airport classified as 4E. It features one 3,600-meter runway and an 82,000-square-meter terminal building. The airport operates 145 routes, connecting 86 domestic and international cities, with an average of over 280 daily flight movements. During winter, the airport is affected by a continental monsoon climate, characterized by frequent cold waves and heavy snowfalls. Snow accumulation can reach 10 centimeters, with extreme low temperatures dropping below -16℃. The risk of road icing is particularly prominent due to accompanying strong winds. The airport is now equipped with four T300 3-in-1 snowplows. Integrating snow pushing, sweeping, and blowing functions into a single operation, these vehicles can efficiently break up compacted snow, clear ice from the pavement, and blow away residual loose snow. They are perfectly adapted to the complex weather conditions at Taiyuan Wusu International Airport during winter, including heavy snowfalls, cold waves with strong winds, and icy roads. This deployment comprehensively enhances the airport's emergency response capabilities for winter ice and snow disasters, better serving its routine winter de-icing and snow removal tasks.
Taiyuan Wusu International Airport
Tongliao Airport is a 4C-class regional airport featuring one 2,700-meter runway and a 12,000-square-meter terminal building. It operates 34 routes connecting 25 cities, with an average of approximately 50 daily flight movements. Located in the heart of the Horqin Grassland in eastern Inner Mongolia, the airport experiences long and frigid winters with a snow season lasting up to five months. Heavy snow accumulation can reach 14 centimeters, with extreme low temperatures approaching -30℃. The area is also frequently hit by strong winds accompanied by blowing snow. The airport is now equipped with two T300 3-in-1 snowplows. Integrating snow pushing, sweeping, and blowing functions into a single operation, these vehicles can efficiently break up compacted snow, clear ice from the pavement, and blow away residual loose snow. They are perfectly adapted to the complex weather conditions at Tongliao Airport during winter, including extreme cold, heavy snowfalls, and strong winds. This deployment comprehensively enhances the airport's emergency response capabilities for winter ice and snow disasters, better serving its routine winter de-icing and snow removal tasks.
Tongliao Airport
Shigatse Dingri Airport is a 4C-class high-plateau regional airport situated at an altitude of 4,316.5 meters. It features one 4,500-meter runway and a 4,000-square-meter terminal building. Connecting cities such as Lhasa and Chengdu, it is the civil aviation airport closest to Mount Everest. Located in the hinterland of the plateau on the northern slopes of Mount Everest, the airport has an annual average temperature of only -5℃, with extreme low temperatures reaching -25℃. The oxygen content is less than 50% of that at sea level. In winter, the pavement is highly susceptible to ice and frost accumulation due to the alternating wind-snow erosion and freeze-thaw cycles. The airport is now equipped with two T300 3-in-1 snowplows. Integrating snow pushing, sweeping, and blowing functions into a single operation, these vehicles can efficiently break up compacted snow, clear ice from the pavement, and blow away residual loose snow. They are perfectly adapted to the complex weather conditions at Shigatse Dingri Airport during winter, including extreme cold, oxygen deficiency, and strong winds with snowstorms. This deployment comprehensively enhances the airport's emergency response capabilities for winter ice and snow disasters, better serving its routine winter de-icing and snow removal tasks.
Shigatse Tingri Airport
